The Butterfly Effect
Tuesday 2 August 2022
A couple of months ago, I applied for a bunch of tech related placements (a requirement for completing my uni degree). Unfortunately, since my course leans more towards the Accounting side rather than IT, I got rejected from every single one of those companies. I started stressing out because by the time I heard back from everyone, there were no more applications that were still open. At the time, I thought I was going to get kicked out of my course so I started frantically typing into the notes app on my phone to try to brainstorm a way out of the situation I was in. Like, what were my current options? And if I chose one of those options, what were the subsequent consequences that could happen? And from those consequences, what could happen? And how about what could happen from those? I realise while writing this that I sound like a crazy control freak, but it was a really stressful situation at the time for me.

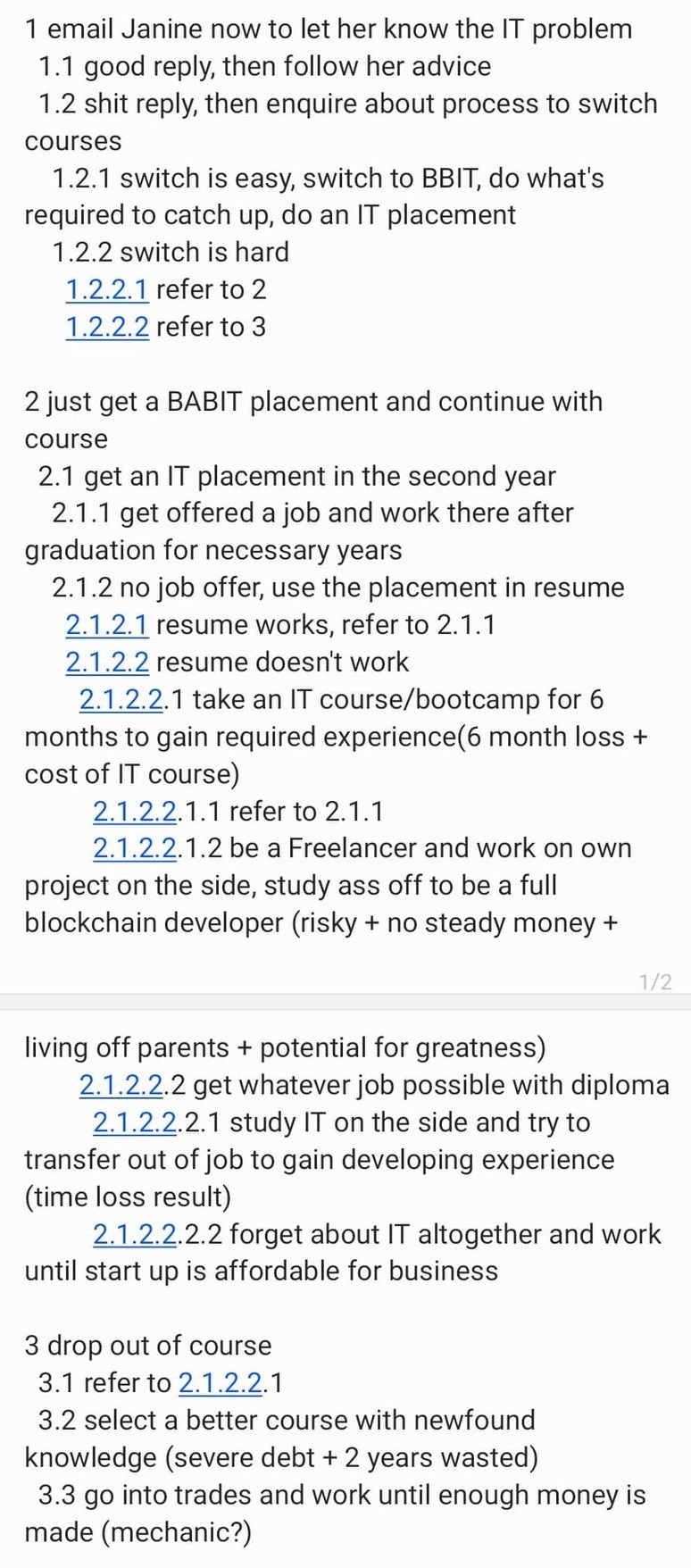

By the end of this crazed brainstorming session, I had realised two things. The first thing being that it wasn't the end of the world. I would just contact my course's coordinator and see if I could defer my placement period to the next semester. And while I wait for the next semester to come around, I'd just put my head down and learn as much about programming as I could, so that by next semester, I'd have so much experience that any company would be crazy not to take me on for placement. And that's exactly what I did. The second thing I realised was that my notes app was a complete mess. It was a miracle I could understand what I had written at all. My trying to list out every possibility that could arise from every previous possibility forced me to have to label each sentence just so I could remember what was connected to what. By the end of it all, I had sentences labelled things like '1.2.2.2' and '2.1.2.2.1' just so I could understand everything. You know what, since you've been so kind to read this far, I'm going to embarrass myself by showing you what I'm talking about. I present, Sean's premature mid-life crisis:
Oh yeah I also wanted to open up my own bar which is why there are a bunch of mentions about 'until I have enough money'. Anyway, the reason why I bring all this up is because I knew I needed something that would allow me to better organise my ideas in a way that didn't look like such a mess, and would allow anyone to understand what I was talking about without having to 'refer to 2.1.2.2.1'. And so sprung my inspiration for 'The Butterfly Effect'.
If you want a quick summary of what this app does and some of the components it entails, check out this video:

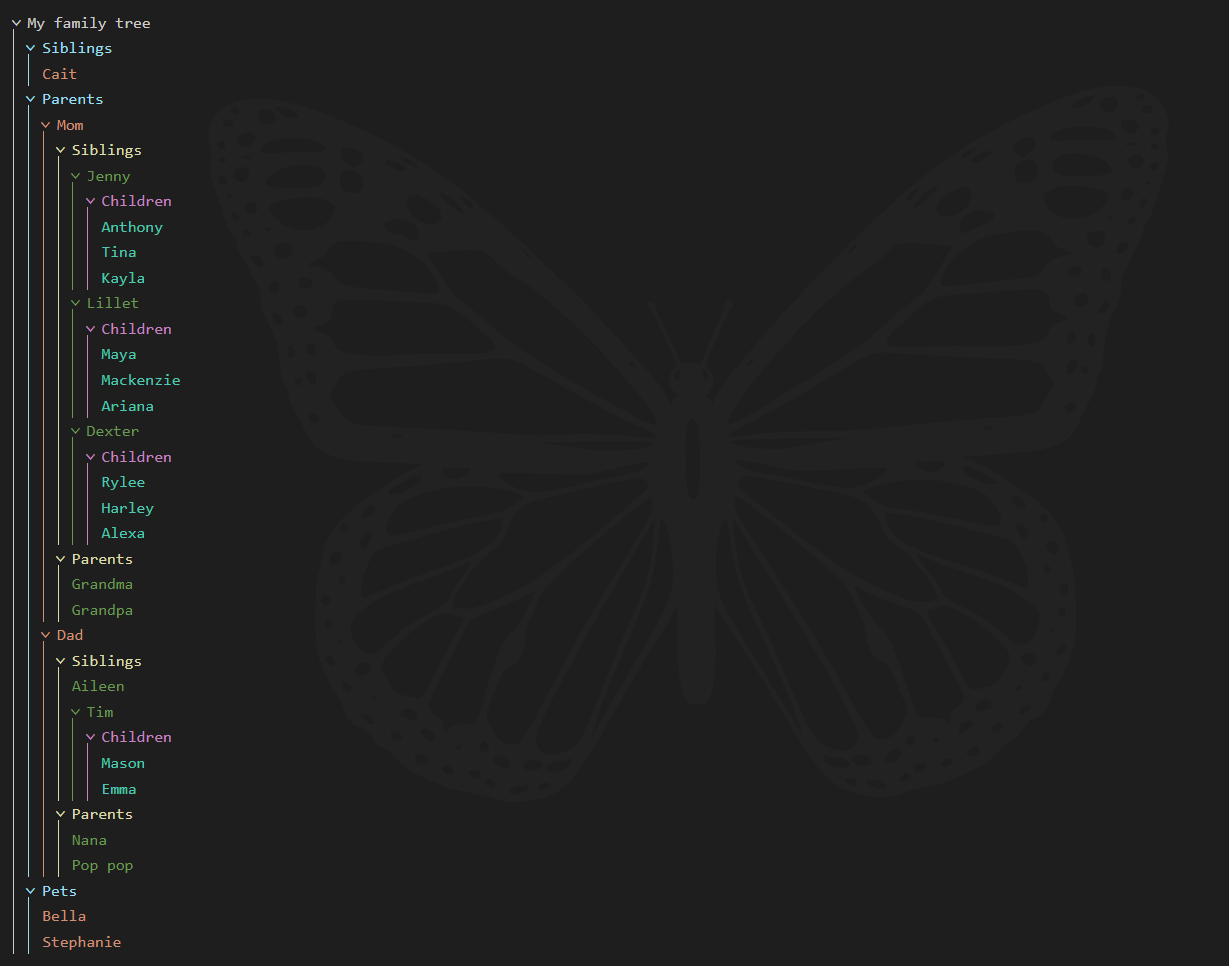

The main idea of this app is that, like that screenshot on my notes app, you can express sentences or ideas in a hierarchical structure. This can be useful for a number of reasons, a classic example being the family tree.
Working on the Project
All in all, the project took me three and a bit weeks to complete. I'm really pleased with how it turned out although there were a few additions that I would've liked to add which I'll mention later on. The rest of this blog is going to get quite techy so if you're one of my friends or family reading this, you might not understand all the jargon. Anyway, the tech that was used to build this app was:
- the Flask framework
- sqlite3
- HTML
- CSS, and
- JavaScript.
Flask and sqlite3 are two technologies that were taught to us during CS50 which is why I decided to use them in this project. I like to think of Flask as being the underlying infrastructure for the app. This means that it is responsible for displaying any required pages whenever the user makes a GET request as well as taking in, and processing any data that the user sends in a POST request. Flask is also used for keeping track of cookies and other session data which enables the user to maintain their work even if they were to close the page.

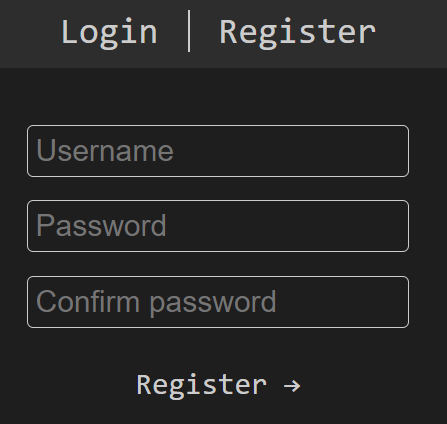

Sqlite3 was the database that was used for keeping track of all user data as well as storing any input that the user gives, enabling them to save their work. The first part is pretty straightforward. After the user registers for an account with a username and password, an automatically generated id (the PK), the user's username, and an encrypted version of their password (obtained by using werkzeug.security) are stored in the 'users' table. Having this information is necessary to ensure that correct passwords are being given whenever a user tries to log onto an account as well as to be able to match any information that is given to the owner of that information.
There are two other tables in the database: the 'nodes' table and the 'children' table. In this project, a node refers to any piece of data that the user provides. In the family tree example, the string of text "My family tree" is a node, "Siblings" is a node, "Cait" is a node etc. Anytime the user adds a new node to their hierarchical tree, there are four pieces of data that get stored in the 'nodes' table. An id (PK), the user's id to whom the node belongs (the FK), what the message/text is, and a boolean representing whether or not the node is the root node (eg. "My family tree" would be a root node). The final piece of the puzzle is the 'children' table. Without this table, all we have are a bunch of nodes floating around that have no relation to one another. For every relationship where a parent node has a child node, this relationship is stored in the 'children' table. For example, there is a relationship between "My family tree", which is the parent node of "Siblings" - the child node. In the same way, "Siblings" is the parent node of "Cait" - the child node. Thus, the 'children' table simply stores the id of the parent node as well as the id of the child node.

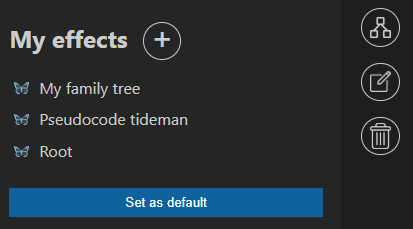

The final part of the project's backend was adding the final functionality to give the user full control of their tree. There were five main functions the user could work with as seen in the image below:
The plus sign allows the user to create a new root node, ie. start a new project. The 'set as default' button works with Flask sessions to set and display one of the user's projects as their default project. The final three buttons allow the user to add a child to a node, edit the message of a node and delete a node respectively. The implementation of these functions was pretty straightforward, however, the delete function was quite interesting because of the fact that if one node is deleted, all of its children must be subsequently deleted. This meant that I had to come up with a solution to recursively delete all of the node's children before the main node could be deleted, which was fun to work on. I always love recursion, it makes my brain feel massive.
And that's pretty much it for the project's backend. As for the frontend, there isn't too much to say. This project allowed me to get really comfortable with working with HTML and CSS and learning a bunch of cool styling techniques. I no longer have to look up 'how to center a div' every 10 minutes which is a plus. The design choice was inspired by the VSCode interface (since I'm incapable of coming up with original designs myself). I was also forced to learn a lot of new JavaScript to get the effects that I wanted including async functions so that I would be able to load the user's data tree (formatted as a .json file) before prettying it up.
Final Thoughts

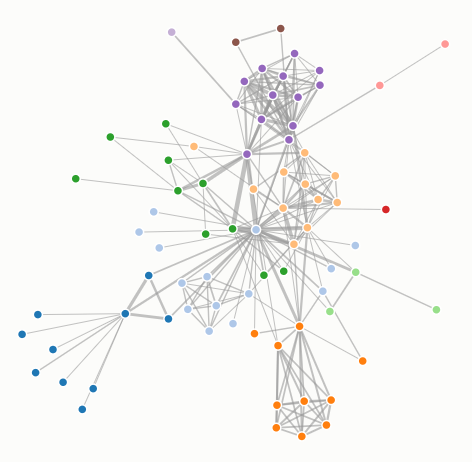

There are a few things that I would redo or add-on to this project if I could travel back in time. I've recently learned about something called Flask-SQLAlchemy which I'm pretty sure would've made working with databases a lot easier than sqlite3. There are also some minor features that I kind of got lazy with, such as the app's error messages which are just the browser's default pop-up alerts. In my defense, Poptropica uses those alerts for their error messages as well, and I'm sure they were a multi-million dollar company in their prime. The final thing that I would've liked to have added was some sort of more visual diagram representation of the user's tree. Something really cool like this:
Source: Mike Bostok
I spent over a week trying to learn either the d3js or ElGrapho framework just so I could have my own graph in the app. But the more I learned, the more I realised just how many components were actually involved in data visualisation. Making something as simple as a graph was nowhere near as easy as I thought it'd be. The reason why I scrapped the idea was because, at this time, the rest of the project was pretty much complete and I was already really happy with it. I knew it would be enough to pass the CS50 final project so I didn't think it would be worth going through another couple of weeks of learning about data visualisation when I could just submit and move onto my next project idea.
In any case, I think this project was a really good learning experience. I'm a lot more confident in web development now. I am considering reworking this website once I find the time, as I know there are a lot of flaws in it. Who knows, maybe when you're reading this, the rennovations have already taken place and this is one of the coolest websites you've ever seen!
Also if you're a real person and you've actually read up until the end, you're a G. I honestly didn't expect anyone to get this far so props to you! <3.
